End Of Line Packaging Machine
|
|
PALLET STRETCH WRAPPER
| Product Code | V.TMD-P26B | V.TMD-P46P | V.EXP-308 | V.EXP-108 | V.EXP-108W* |
| Stretch | Manual | Power Pre-Stretch | Manual | Power Pre-Stretch | Power Pre-Stretch |
| Power Supply (V/Hz) | 100/110/220/230/240, 50/60Hz, 1-Phase | 100/110/220/230/240, 50/60Hz, 1-Phase | 100/110/220/230/240, 50/60Hz, 1-Phase | 100/110/220/230/240, 50/60Hz, 1-Phase | 100/110/220/230/240, 50/60Hz, 1-Phase |
| Power Consumption (kw) | 0.8 | 1.2 | 0.8 | 1.2 | 1.2 |
| Speed of turntable (rpm) | 10 | 10 | 12 | 12 | 12 |
| Turntable Diameter (mm) | 1500(optional 1650) | 1500(optional 1650) | 1800 | 1800 | 1650 |
| Max. Loading Weight (kg) | 1200 | 1650 | 2000 | 2000 | 2000 |
| Max. Wrapping Height (mm) | 2200(optional 2600/3000) | 2200(optional 2600/3000) | 2000(optional 2500,3000) | 2000(optional 2500,3000) | 2000(optional 2500,3000) |

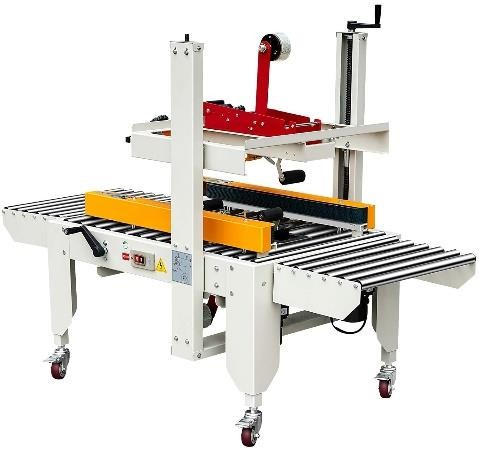

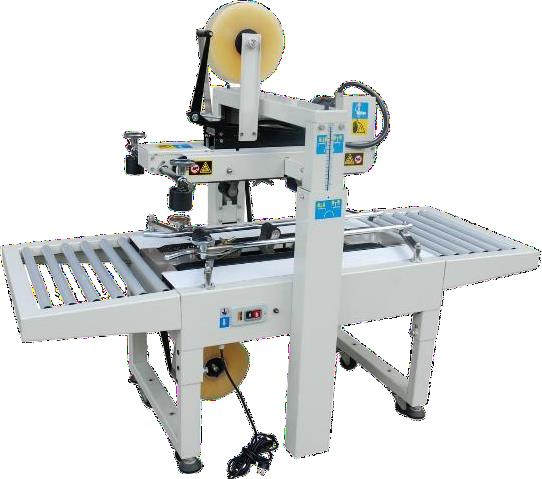

SEMI AUTOMATIC CARTON SEALER
|
|
SEMI AUTOMATIC CARTON SEALER
| Product Code | VS-01S Economy | VCS-01TB | VCS-01TS |
| Belt Drive | Side Belt | Top and Bottom | Top and Side |
| Power Supply | 220V/50Hz Single Phase | 220V/50Hz | 220V/50Hz |
| Power Consumption | 0.18KVa | 200W | 300W |
| Conveyor Speed | 20mtrs /min | 20mtrs /min | 18mtrs /min |
| Maximum Package Size (LxWxH) | ∞ x 500 x 500 mm | ∞ x 500 x 500 mm | ∞ x 500 x 500 mm |
| Minimum Package Size (WxH) | 100 x 100 mm | 140 x 110 mm | 110 x 150 mm |
| Tape Width | 2.5" inch | 60 mm | 38,51,76 mm |
| Machine Dimensions (LxWxH) | 1660×850×1260 mm | 1755×800×(960-1650) mm | 1730×850×1380 mm |
| Weight | 120kg | 150kg | 125kg |
AUTOMATIC PNEUMATIC CARTON SEALER
| Product Code | VCS-01TB/Pneumatic Type |
| Belt Drive | 110V, 220V, 240V 50/60Hz |
| Power Supply | 55-110 |
| Power Consumption | 0.18KVa |
| Conveyor Speed | 18mtrs /min |
| Maximum Package Size (LxWxH) | ∞ x 500 x 500 mm |
| Minimum Package Size (WxH) | 150 x 120 mm |
| Tape Width | 36,48,60 mm |
| Machine Dimensions (LxWxH) | 1045 x 800 x 1270 mm |
| Weight | 130kg |
