Packaging and Filling Machines

GRANULES VFFS MACHINE (10g-10kg) (SUGAR, SALT, PULSES, GRAINS, NUTS etc)

  • Touch screen PLC for total functioning of machine.
  • Weigher uses load sensors to obtain high accuracy and fast speed.
  • Heavy duty suitable for long working hours without breakdown.
  • Bagging machine works on pneumatic and servo driven technology.

BAGGING MACHINE

Product Code VPB-500 VPB-800 VPB-1000
Speed (bags/min) Max. 60 10-30 Max. 30
Bag Size (Lxw) (mm) 50-300 x 75-240 100-480 x 160-390 100-600 x 240-490
Capacity (kg) upto 2 upto 5 upto 10
Power Supply (V/Hz) 220/50 220/50 220/50
Power (kW) 3.5 4.5 5
Compressed Air 0.35m3/min, 0.6Mpa 0.7m3/min, 0.6Mpa 0.6m3/min, 0.6Mpa

WEIGHER

Product Code 4HEAD-LINEAR WEIGHER 10 HEAD - MULTI HEAD WEIGHER 14 HEAD-MULTI HEAD WEIGHER
Weighing Range 1000 gm 10 - 3,000 gm 10- 3,000 gm
Accuracy ±0.5-1 gm ±0.1 - 2 gm ±0.1 - 2 gm
Max. speed 100g, 50 packs per min 70 WPM 120WPM
Power supply 220V, 1000W 220V, 50 Hz, 1.5 KW 220V, 50 Hz, 2 KW
Hopper volume 2.4 L 1.3 L 1.3 L
Monitor - 7" HMI 7" HMI
Warehousing and Storage

POWDER VFFS MACHINE (10g-5kg)(Spices, Wheat Flour, Milk Powder etc)

Features:

  • Touch screen PLC for total functioning of machine.
  • Machine uses servo based auger filling mechanism.
  • Heavy duty suitable for long working hours without breakdown.
  • Bagging machine works on pneumatic and servo driven technology.

BAGGING MACHINE

Product Code VPB-500 VPB-800 VPB-1000
Speed (bags/min) Max. 60 10-30 Max. 30
Bag Size (Lxw) (mm) 50-300 x 75-240 100-480 x 160-390 100-600 x 240-490
Capacity (kg) upto 2 upto 5 upto 10
Power Supply (V/Hz) 220/50 220/50 220/50
Power (kW) 3.5 4.5 5
Compressed Air 0.35m3/min, 0.6Mpa 0.7m3/min, 0.6Mpa 0.6m3/min, 0.6Mpa

AUGER FILLER

Product Code VPA-2000 VPA-5000
Filling Weight 10 - 2000g 10g - 5kg
Filling Accuracy 100 - 500g,≤±1%; > 500g,≤±0.5%; 100 - 500g, ≤±1%; > 500g, ≤±0.5%
Filling Rate 40 - 120 times/min 40 - 120 times/min
Power supply 3P / 220V-415V 50/60Hz 3P /208V-415V 50/60Hz
Total Power 1.9KW 2.4KW
Total Weight 200Kg 250kg
Overall Dimensions 1060×600×1100mm 1125×700×1200mm
Warehousing and Storage

MINI VFFS MACHINE

All the mini VFFS / sachet packing machines are suitable for heat sealable compound materials such as single Paper/PE, Cellophane/PE, Aluminum foil /PE, BOPP/PE, Nylon/PE etc.

GRANULES PACKAGING MACHINE

Product Code VPG-40I VPG-150 VPG-300 VPG-800 VPG-2000
Capacity (bags/min) 50-110 35-60 35-60 28-60 15 - 35
Bag size (LxW)mm 55-110 70-150 30-180 100-300 50-300
Bag Width (mm) 30-80 70-115 30-115 40-175 50-220
Filling range (ml) 5-40 30-150 150 1400 50-2000
Power Supply (V/Hz) 220/50 220/50 220/50 220/50 220/50
Power (KW) 1.5 1.9 1.9 1.5 1.9
Net Weight (kg) 350 450 260 350 550
External Dimensions (LxWxH) (mm) 600x790x1780 700 x 800 x 1900 820x695x1740 1200x800x2000 1120x920x2170

POWDER PACKAGING MACHINE

Product Code WPP-40 WPPH-150 WPP-300 WPP-800
Capacity (bags/min) 50-110 35-60 35-60 28-60
Bag size (LxW)mm 55-110 70-150 30-180 100-300
Bag Width (mm) 30-80 70-115 30-115 50-175
Filling range (ml) 5-40 30-150 150 1400
Power Supply (V/Hz) 220/50 220/50 220/50 220/50
Power (KW) 1.5 1.9 1.9 1.5
Net Weight (kg) 350 450 300 350
External Dimensions (LxWxH) (mm) 600x790x1780 700 x 800 x 1900 820x695x1740 1200x800x2000
Warehousing and Storage

GRANULES FILLING MACHINE (50kg)

Features:

  • Heavy duty machine for bulk bag production line up to 50kg.
  • The machine adopts load sensors for weighing and adopts dual vibratory feeders per weighing hopper. This gives high accuracy.
  • This machine is equipped with pneumatic bag clamping device.
  • Contact parts in SS.
Product Code VPBG-50
Weighing range {kg} 5-25:Max50
Packaging speed {bags/min} 6-12 {5kg-25kg}
Accuracy -+0.2%
Power supply C380V 50/60Hz 5KW
Storage hopper volume (L) 300
Weighing hoppers volume 50L x2nos
Load cell one per weighing hopper {total 2 nos}
Warehousing and Storage

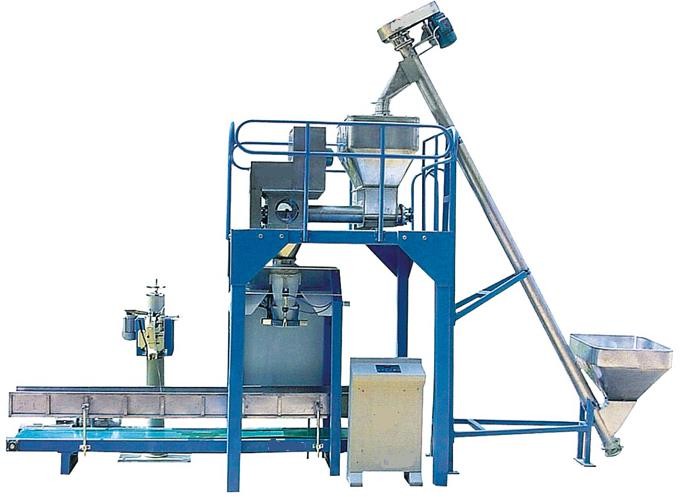

POWDER FILLING MACHINE (50kg)

Features:

  • Heavy duty machine for bulk bag production line up to 50kg.
  • The machine adopts load sensors for weighing and adopts horizontal double auger feeding.
  • This machine is equipped with pneumatic bag clamping device.
  • Contact parts in SS.
Product Code VPBP-50
Weighing range {kg} 5 - 25, max 50
Packaging speed {bags/min} 3 – 8
Accuracy ±0.2 - 0.5
Power supply (H,Hz.KW) 380 ±10%, 50, 5
Machine weight (kg) 1000
Storage hopper volume (L) 300
Warehousing and Storage

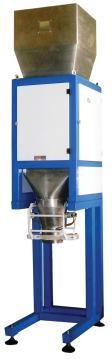

GRANULES (25kg)

Features:

  • Heavy duty machine for bulk bag production line up to 50kg.
  • The machine adopts load sensors for weighing and adopts dual vibratory feeders per weighing hopper. This gives high accuracy.
  • This machine is equipped with pneumatic bag clamping device.
  • Contact parts in SS.
Product Code VPBG-25
Voltage (V/Hz) AC 220/50 110/60
Power (W) 1000
Weighing Range (kg/bag) 2-25
Weighing Speed (bags/h) 480
Weighing Accuracy ±0.2%
Net Weight (kg) 350
Load Sensor 1 unit (35kg)
Storage hopper volume (L) 300
Warehousing and Storage

4 & 2 HEAD LINEAR HEAD WEIGHER

Features:

  • Apply advanced digital signal processing and high speed and stable weighing.
  • Use the digital sensors to enhance speed, precision and anti-jamming.
  • Control by SCM system, use twin-vibration linear feeder, advanced technology and easy to operate.
  • Frame with IP64 protection ,easy to assemble and clean high compatibility with other packing machines.
Product Code VP4H-2.4 VP4H-3.0 VP2H-5.5 VP2H-15
Number of Buckets 4 ( 2.4 L each) 4 (3 L each) 2 (5.5 L each) 2 (15 L each)
Weighing Range (gm) 1000 20-2000 10-3000 1000-12000
Weighing Accuracy (gm) +-0.5-1 1-2 +-2-4 2-10
Speed (bags/min) 30-40 55 15-30 25
Load Sensors 4 4 2 2
Product Setting 10 20 10 20 10 20 10 20
Power Supply (V/Hz) 220/50/60 220/50/60 220/50/60 220/50/60
Power (W) 1000 1200 1000 1200
Warehousing and Storage

POWDER (2kg & 5kg)

Features:

  • Machine fills the product by the adjustable volumetric cups.
  • Product dispensed at the press of pedal or proximity to sensor.
  • Simple operation and maintenance free.
Product Code VPAF-2000 VPAF-5000
Voltage (V/Hz) AC 220/50 110/60 AC 220/50, 110/60
Power (W) 900 1300
Packing Capacity (ml) 200-2000 500-5000
Net Weight (kg) 200 250
Weighing Accuracy ±0.2%
Net Weight (kg) 350
Load Sensor 1 unit (35kg)
Storage hopper volume (L) 300

BAND SEALERS

Warehousing and Storage
HORIZONTAL BAND SEALER VPB-100 		Warehousing and Storage

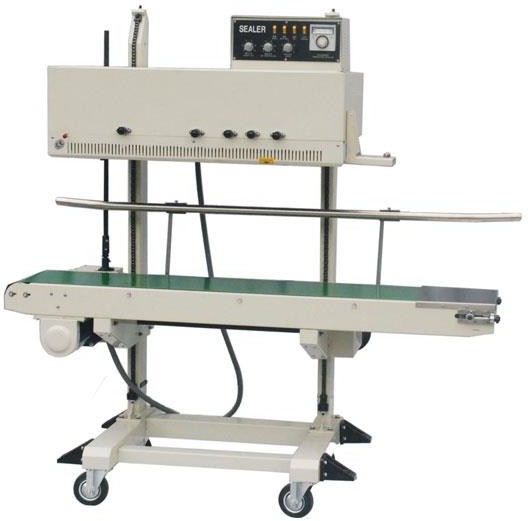

VERTICAL BAND SEALER VPB-100A 		Warehousing and Storage
HEAVY DUTY BAND SEALER

AUXILLARY EQUIPMENTS

Warehousing and Storage

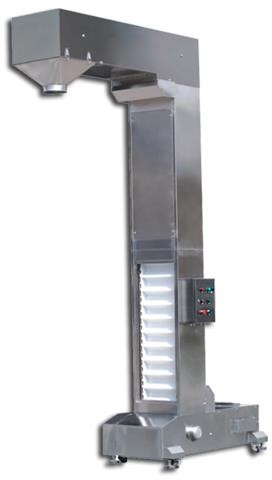

BUCKET ELEVATOR 		Warehousing and Storage

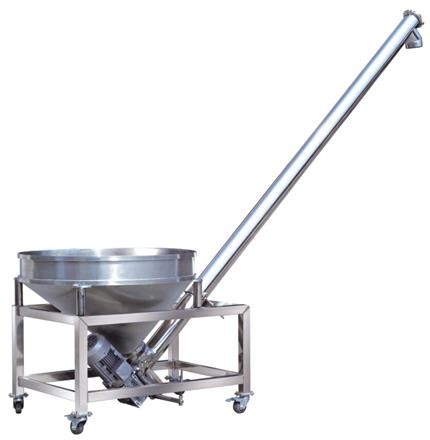

SCREW FEEDER 		Warehousing and Storage

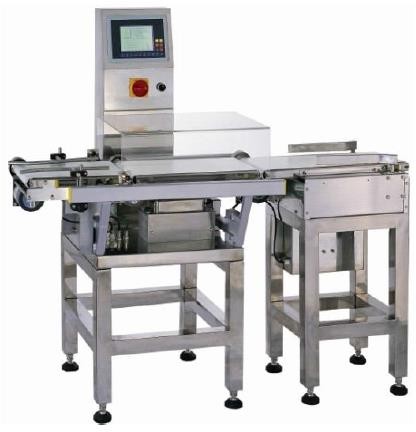

ONLINE CHECK WEIGHER 		Warehousing and Storage

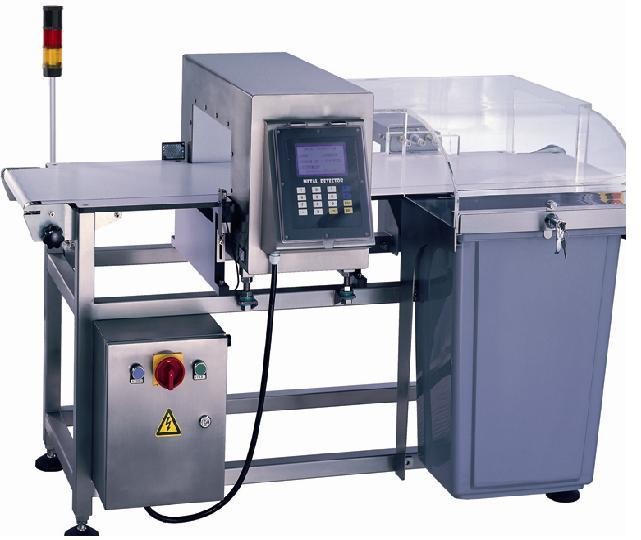

METAL DETECTOR

LABELLING MACHINE

Warehousing and Storage

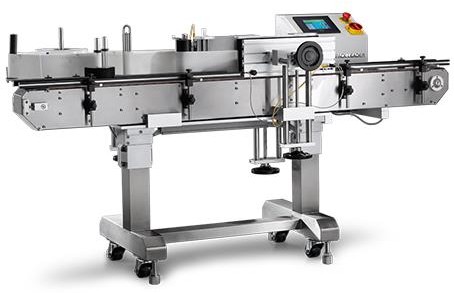

WRAP AROUND LABELLING MACHINE 		Warehousing and Storage

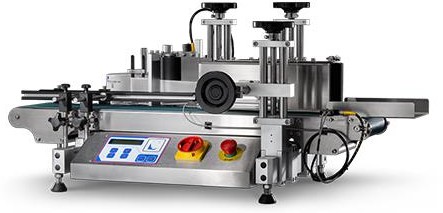

TABLETOP WRAP ARROUND LABELLING MACHINE 		Warehousing and Storage
TOP AND BOTTOM LABELLING MACHINE
Warehousing and Storage
TABLETOP TOP LABELLING MACHINE 		Warehousing and Storage
FRONT AND BACK LABELLING MACHINE 		Warehousing and Storage
STAND ALONE LABEL APPLICATOR
